1. High Precision Humidity Sensing Unit : Multi-point layout for real-time moisture content data collection
2. Intelligent Control Cabinet : PLC and touchscreen with closed-loop humidity control algorithm

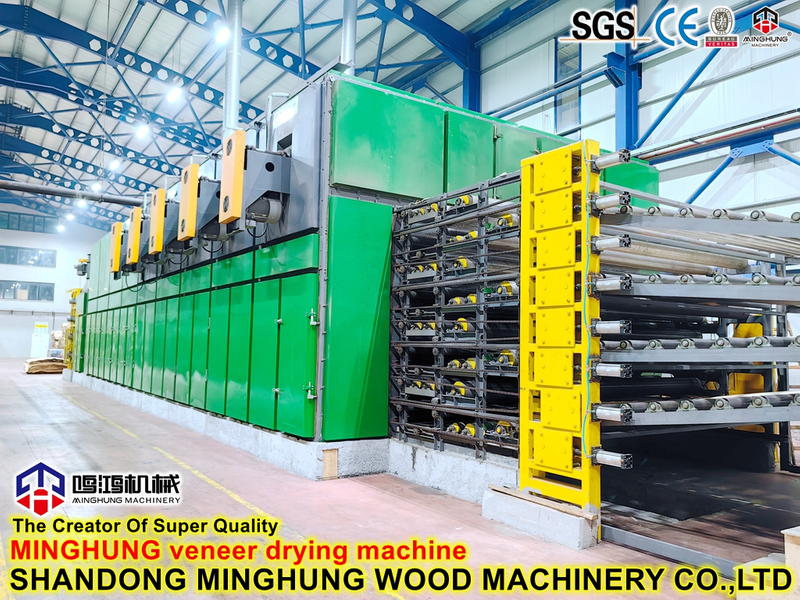

3. High Efficiency Drying Kiln Body : Excellent thermal insulation to reduce heat loss
4. Hot Air Circulation System : Ensures uniform temperature and humidity distribution
5. Multi-zone Heating Device : Independent temperature control per zone
6. Automatic Moisture Exhaust and Fresh Air Supply System : Precisely regulates drying medium humidity
7. Conveying System : Adjustable speed for different board thicknesses
1. Plywood boards to be dried enter the drying system
2. Humidity sensors measure board moisture content in real time
3. The control system automatically adjusts based on target humidity:
- Heating temperature
- Hot air circulation volume
- Moisture exhaust and fresh air ratio
- Conveying speed
4. Multi-point monitoring during drying dynamically corrects parameters
5. Boards are automatically discharged upon reaching the target moisture content
High Humidity Control Precision : Accuracy up to ±1.5% moisture content, preventing over-drying or under-drying
Improved Product Quality : Uniform moisture content reduces risk of cracking, warping, and delamination
Energy Saving : Intelligent adjustment reduces energy waste, overall energy consumption reduced by 15–25%
High Automation : Reduces manual intervention and dependence on operator experience
Traceable Production Data : Real-time logging and reporting for quality management
Strong Adaptability : Suitable for different board thicknesses and initial moisture contents
Remote Monitoring Option : Supports remote viewing and alarm push via PC or mobile device
Main Technical Parameters
Parameter | Range |
Applicable board thickness | 4–40 mm |
Working width | 1000–2700 mm |
Drying temperature range | 50–180 °C |
Humidity control accuracy | ±1.5% (moisture content) |
Target moisture content setting | 5–10% |
Conveying speed | 0.5–8 m/min (adjustable) |
Heat source type | Thermal oil / steam / hot air furnace / electric heating |
Control system | PLC + touchscreen |
We are Shandong MINGHUNG Wood Based Panel Machinery Co.,Ltd China factory and manufacturer of full sets of Plywood machinery and Veneer machinery. With many years production experience, advanced production technology,experienced workers and professional engineers, we can offer you the suitable, good and strong machinery for you.
Customized solutions based on product thickness, production capacity, and site conditions
Complete export packaging and logistics arrangement
Engineer dispatch for overseas installation and commissioning guidance
Operation and maintenance training provided
Long-term supply of spare parts and technical consultation
