Energy-Saving Plywood Production Line for Construction Formwork

This production line is specifically designed for large-scale manufacturing of high-quality construction formwork (concrete pouring molds). It integrates an energy-saving hot pressing system, automatic layup, and glue spreading equipment, achieving a daily output of 500 to 1,000 standard-size (4×8 feet) formwork panels with low energy consumption. The line is suitable for various fast-growing wood species including poplar, eucalyptus, and pine, with product thickness ranging from 9mm to 30mm to meet different construction project requirements for formwork strength and reuse cycles.

Availability:
Quantity:
sharethis sharing button

Energy-Saving Plywood Production Line for Construction Formwork

|

 Product Positioning & Application Scenarios

Construction formwork is a core consumable material in concrete pouring construction, widely used in high-rise buildings, bridges, high-speed railways, dams, and urban commercial complexes. The formwork produced by this line features high strength, high flatness, water and wear resistance, and can be reused for multiple cycles (film-faced panels can achieve 20+ reuses).

|

 Product Packaging

plywood stacker shipping
plywood press machine loading
press machine loading

|

 Delivery Video


|

 Comment & FAQ

1. What do you do?

A: This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

2. What do you do?

A: This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. A: This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

3. What do you do?

A: This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

4. What do you do?

A: This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

5. What do you do?

A: This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

|

 Core Process Flow

The production line covers the complete process from veneer treatment to finished product packaging: Raw Veneer → Drying → Glue Spreading → Layup & Assembly → Cold Pre-Pressing → Hot Press Forming → Edge Trimming → Sanding → Inspection & Grading → Packaging & Warehousing.

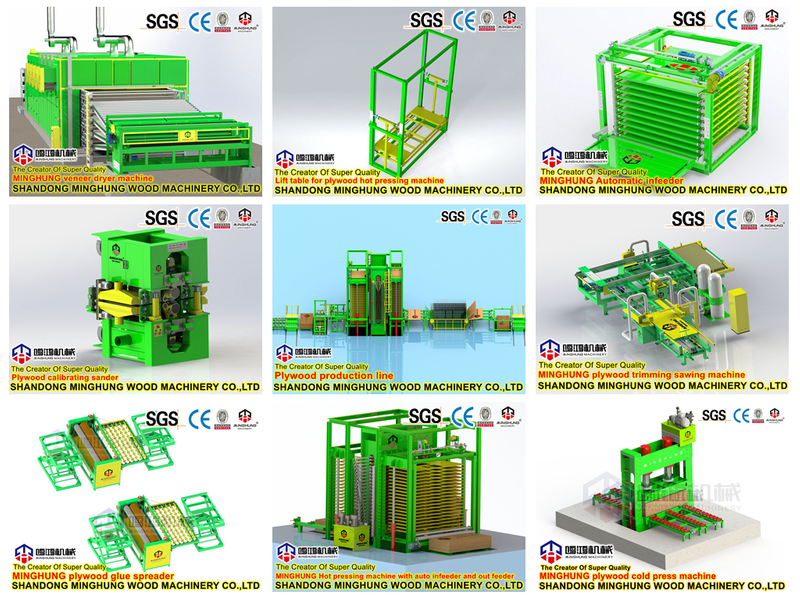

MINGHUNG plywood production line

|

 Core equipment of the production line


Energy-Saving Hot Press: Utilizes thermal oil circulation heating and heat recovery systems, reducing energy consumption per unit product by 20%-35% compared to traditional equipment. Multi-opening design (e.g., 26 openings) allows simultaneous pressing of multiple mats, significantly increasing production capacity.

MINGHUNG15 floors hot press


Automatic Glue Spreader & Layup Machine: Ensures uniform glue application, saving approximately 15% of adhesive consumption.

MINGHUNG Plywood Glue Spreader

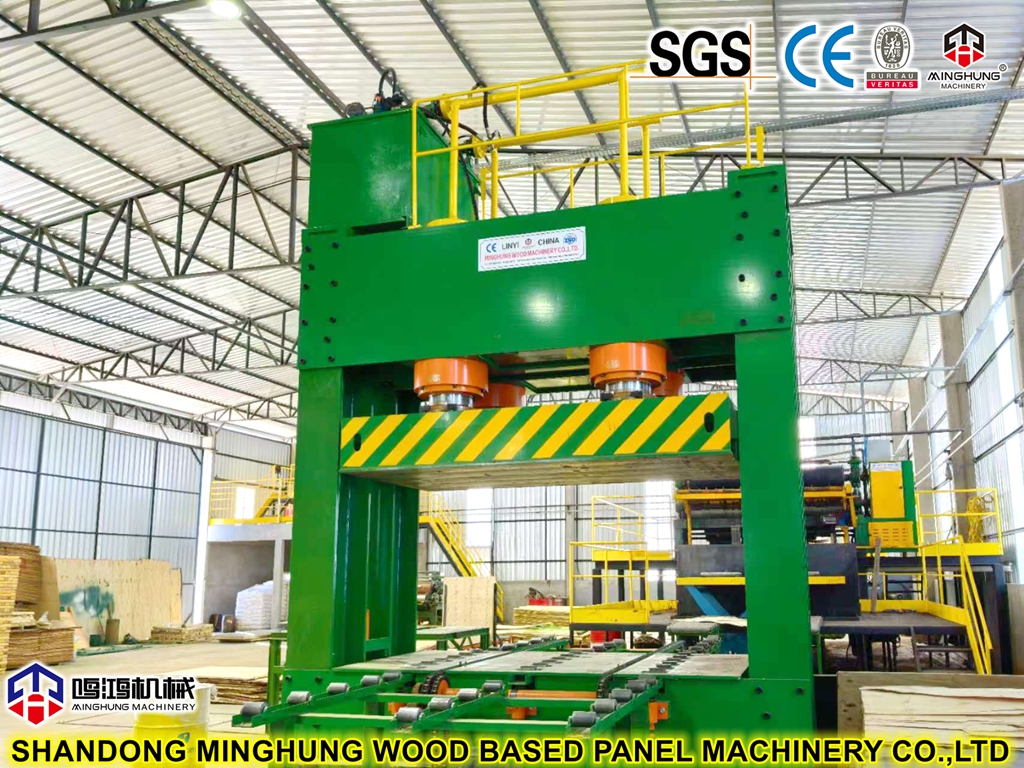

Cold Pre-Press: Used for pre-pressing and air exhaustion, reducing mat thickness and improving subsequent hot press efficiency.

MINGHUNG Plywood cold press


PLC Intelligent Control System: Enables fully automatic precision control of temperature, pressure, and time, supporting remote monitoring and fault diagnosis.


Automatic Edge Trimmer & Sander: Ensures precise dimensions and smooth surface finish.

minghung plywood sawing line

MINGHUNG Sanding Machine For Plywood


|

 Certifications

A drying machine insulation structure
certificate for Drying machine fan guide device
Glue Machine Certificate
Plywood Machinery Certificate

|

 Advantages

1. High Reuse Quality: Produced film-faced construction formwork can achieve 15-20+ reuses, saving construction costs for customers.

2. Significant Energy Savings: Integrated energy-saving technologies result in electricity and heat consumption per m³ well below industry averages.

3. Turnkey Full-Process Solution: One-stop service from equipment installation, commissioning to operator training.

4. Multi-Species Adaptability: Stable production regardless of hardwood or softwood, with wide raw material availability.

|

 Key Technical Specifications


Parameter

Specification

Applicable Raw Materials

Poplar, eucalyptus, pine, mixed hardwood, and various fast-growing wood species

Finished Panel Size

1220×2440 mm (4×8 ft), non-standard sizes customizable

Panel Thickness Range

9 mm - 30 mm (continuously adjustable)

Daily Output Capacity

500 - 1,000 sheets (standard 4×8 ft panels)

Hot Press Temperature

115℃ - 220℃ (temperature control accuracy ±1.5℃)

Hot Press Pressure

2.5 - 6.0 MPa (adjustable)

Number of Hot Press Openings

15 - 26 openings (configurable based on capacity)

Thickness Tolerance

±0.1 mm - ±0.3 mm

Glue Consumption

180 - 220 g/m² (double-sided application)

Total Installed Power

180 - 350 kW (depending on configuration)

Electricity Consumption (per m³ finished product)

Approx. 45 - 65 kWh

Thermal Energy Consumption (per m³ finished product)

Approx. 80 - 120 kg standard coal equivalent (biomass compatible)

Comprehensive Energy Saving Rate

20% - 35% lower than traditional equipment

Total Production Line Length

Approx. 45 - 85 meters (depending on configuration)

Automation Control System

PLC touch screen fully automatic control with remote monitoring interface

|
