Post-Peeling Veneer Stacker Direct Docking No Transfer Needed
You are here: Home » Veneer Machine Serise » Veneer Stacker » 1300mm Veneer Stacker » Post-Peeling Veneer Stacker Direct Docking No Transfer Needed

PRODUCT CATEGORY

Post-Peeling Veneer Stacker Direct Docking No Transfer Needed

The veneer stacker is an essential piece of automation equipment in plywood and wood-based panel production lines. It is primarily used to automatically collect, convey, and neatly stack veneers after the upstream processes of peeling, drying, or gluing, according to preset layer counts. The machine adopts PLC intelligent control and a servo motor drive system, ensuring smooth operation and precise positioning, significantly reducing manual labor intensity while improving production efficiency and stacking quality. It is suitable for automatic palletizing of various wood veneers, thin panels, and composite sheets.

Availability:
Quantity:
sharethis sharing button

Post-Peeling Veneer Stacker Direct Docking No Transfer Needed


Veneer Stacker


This machine is specifically designed for production lines of plywood, blockboard, ecological boards, construction formwork, and other panel products, undertaking the critical process of automatic veneer collection and stacking. The entire machine features a robust structure and reliable operation, suitable for continuous, high-volume production environments.


MINGHUNG veneer peeling line

veneer stacker for MINGHUNG veneer peeling lathe


Machine Structure and Components


The veneer stacker mainly consists of the following systems:


System Name

Main Components

Function Description

Conveying System

Conveyor belt, drive rollers, idler rollers

Smoothly transports upstream veneers to the stacking station

Lifting and Stacking System

Hydraulic lifting table, scissor-type support frame, hydraulic cylinder

Receives veneers and automatically descends as stack height increases, maintaining a constant drop position

Centering and Positioning System

Centering cylinders, positioning stop plates, guide rails

Squares and aligns fallen veneers to ensure neat edges

Frame Structure

Steel welded frame, protective guardrails

Provides overall support, ensures rigidity and operational safety

Electrical Control System

PLC controller, touchscreen HMI, frequency inverter, sensors

Enables fully automatic control, parameter settings, and operation monitoring

Pneumatic System

Cylinders, solenoid valves, air source treatment units

Provides power for centering, discharging, and other actions


MINGHUNG 4*8ft veneer stacking machine MINGHUNG 0.3MM veneer stacker
siemens motor for veneer stacker MINGHUNG veneer stacking details


Working Process


Upstream veneers enter the stacker via the conveyor belt. When the photoelectric sensor detects that a veneer has reached the preset position, the control system issues a command, and the veneer smoothly drops onto the lifting stacking platform below. The centering device then actuates to push the veneer into proper alignment. After each layer is stacked, the lifting platform automatically descends by the thickness of one veneer, maintaining a consistent stacking surface height. Once the stack reaches the preset layer count or height, the system signals for the entire stack to be removed by forklift or conveying device.



Key Advantages


1. Fully Automatic Operation, Labor Saving

2. Neat Stacking, Stable Quality

3. Servo Drive, Precise and Reliable

4. PLC Intelligent Control, Easy Operation

5. Durable and Stable Lifting Platform

6. Multiple Safety Protections


Technical Specifications


Parameter

Specification

Applicable Veneer Thickness

1.0 – 6.0mm

Max Veneer Size

2500 × 1250mm

Min Veneer Size

500 × 500mm

Max Stacking Height

1500mm

Stacking Speed

0 – 12 layers/min

Positioning Accuracy

±1.0mm

Control Method

PLC + Touchscreen HMI

Drive Method

Servo Motor Drive

Power Supply

380V / 50Hz / 3-Phase

Total Power

Approx. 25kW

Overall Dimensions

5500*2000*2750mm

Machine Weight

Approx. 2500kg


MINGHUNG veneer stacker details MINGHUNG veneer stacker

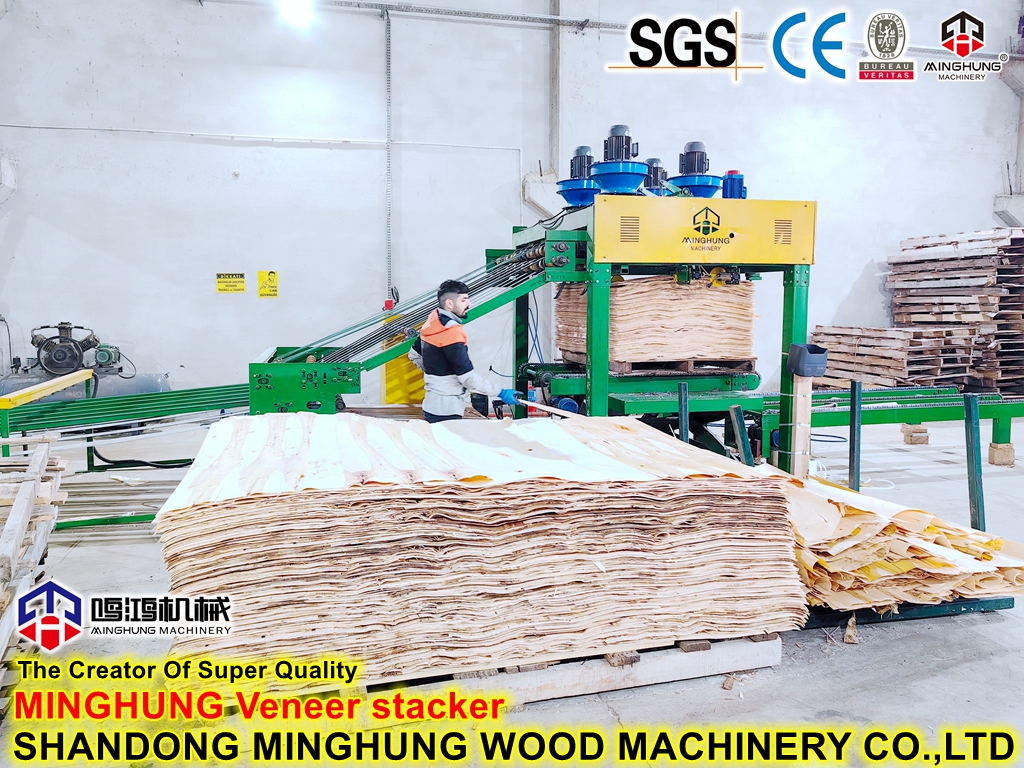

MINGHUNG Veneer satcker MINGHUNG Veneer satcker


Application Scope


Widely used in production lines for plywood, blockboard, ecological boards, MDF, construction formwork, and various other wood-based panels. Also suitable for automatic sheet stacking processes in furniture manufacturing, packaging materials, and other industries.


Delivery photos


MINGHUNG veneer stacker loading MINGHUNG stacker loading
MINGHUNG veneer stacker loading MINGHUNG Veneer stacker delivery


Our Services

I. Pre-Sales Services

1. Technical Consultation & Solution Design

  Based on the customer's production line layout, veneer specifications, and capacity requirements, we provide professional technical consultation and tailor the optimal stacking solution.

2. Sample Testing Support

  Customers can send veneer samples to our factory. We conduct stacking tests using actual equipment and provide test reports and videos to ensure the machine meets customer requirements.

3. Factory Visit Reception

  We welcome customers to visit our factory for on-site inspection. Professional engineers will accompany, explain, and demonstrate machine operation on site.


II. In-Sales Services

1. Transparent Production Schedule

  After contract signing, we provide a detailed production schedule and regularly update the customer on the progress of manufacturing, assembly, and commissioning at each stage.

2. On-Time Delivery

  We strictly organize production and shipment according to the delivery date specified in the contract, ensuring timely delivery.


III. After-Sales Services

1. Installation & Commissioning Guidance

  After the equipment arrives at the customer's site, we dispatch experienced engineers to provide on-site guidance for installation and commissioning, ensuring smooth startup.

2. Operation & Maintenance Training

  We provide systematic training for the customer's operators and maintenance personnel, covering machine operation, daily maintenance, fault diagnosis, etc., ensuring the customer can operate the equipment independently.

3. Warranty Service

  The complete machine comes with a 12-month warranty, with key components (servo motors, PLC controllers, sensors) covered for 18 months. During the warranty period, any failures caused by manufacturing defects will be repaired or parts replaced free of charge.

4. Remote Technical Support

  We provide 7×24-hour telephone, email, and video remote technical support, responding quickly to customer issues to minimize downtime.

5. On-Site Repair Service

  For issues that cannot be resolved remotely, we commit to dispatching a service engineer to the site within 48 hours (subject to visa and flight availability).

6. Spare Parts Supply

  We offer long-term supply of genuine spare parts to ensure hassle-free maintenance throughout the equipment's lifecycle. Spare parts can be ordered together with the machine or purchased separately.

7. Regular Follow-Up & Equipment Health Check

  During the warranty period, we conduct regular follow-up visits to understand the equipment's operating status and provide remote or on-site equipment health inspection services.
