Following the design philosophy of "practical, adequate, and durable," this equipment retains the core temperature control and circulation systems essential for plywood drying while reducing overall energy consumption and daily maintenance costs, helping users recover their equipment investment in a relatively short time. It is especially suitable for customers who are new to the wood-based panel industry, have limited budgets, or wish to conduct small-batch trial production to test the market.
Equipment Positioning and Target Users
This equipment is positioned for the economical market, primarily serving:
Newly established small and medium-sized plywood processing plants
Customers upgrading from manual sun-drying to mechanical drying
Entrepreneurs with limited investment budgets but urgent need to improve production efficiency
Panel processing workshops looking to reduce outsourcing costs for veneer drying
Flexible factories mainly engaged in contract processing or small-batch, multi-variety production
Core Structural Components
The equipment consists of the following main parts:
Heating System: High-efficiency hot air furnace or heat exchanger with good heat source adaptability
Circulating Fan System: Ensures uniform hot air flow within the drying chamber

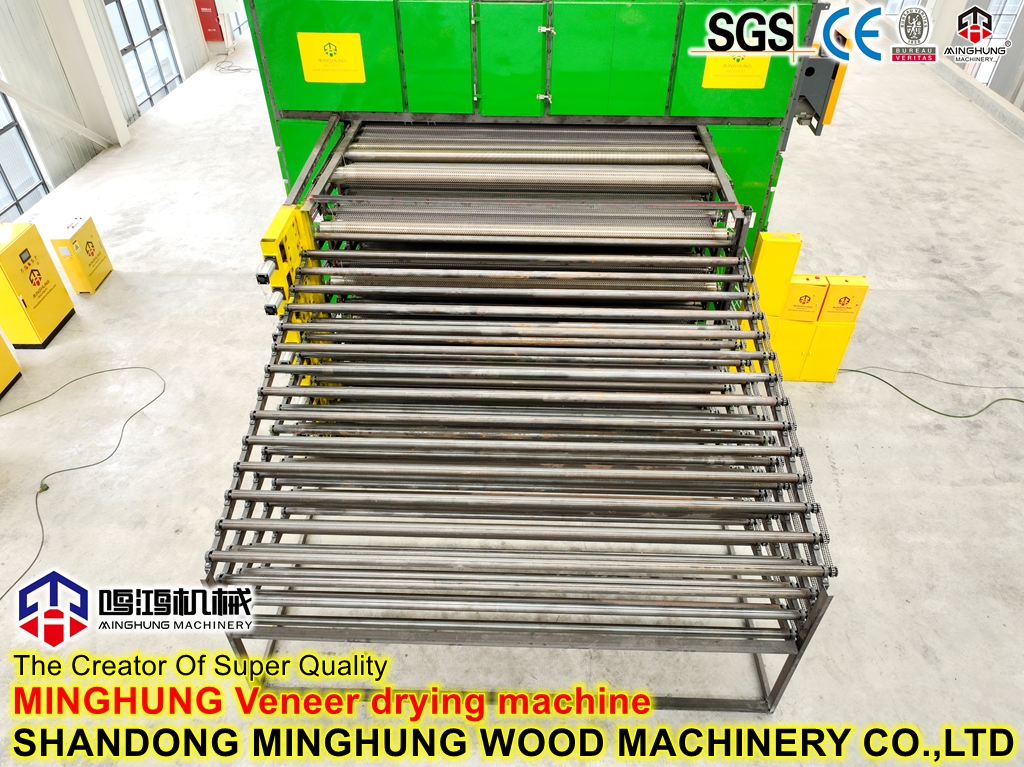

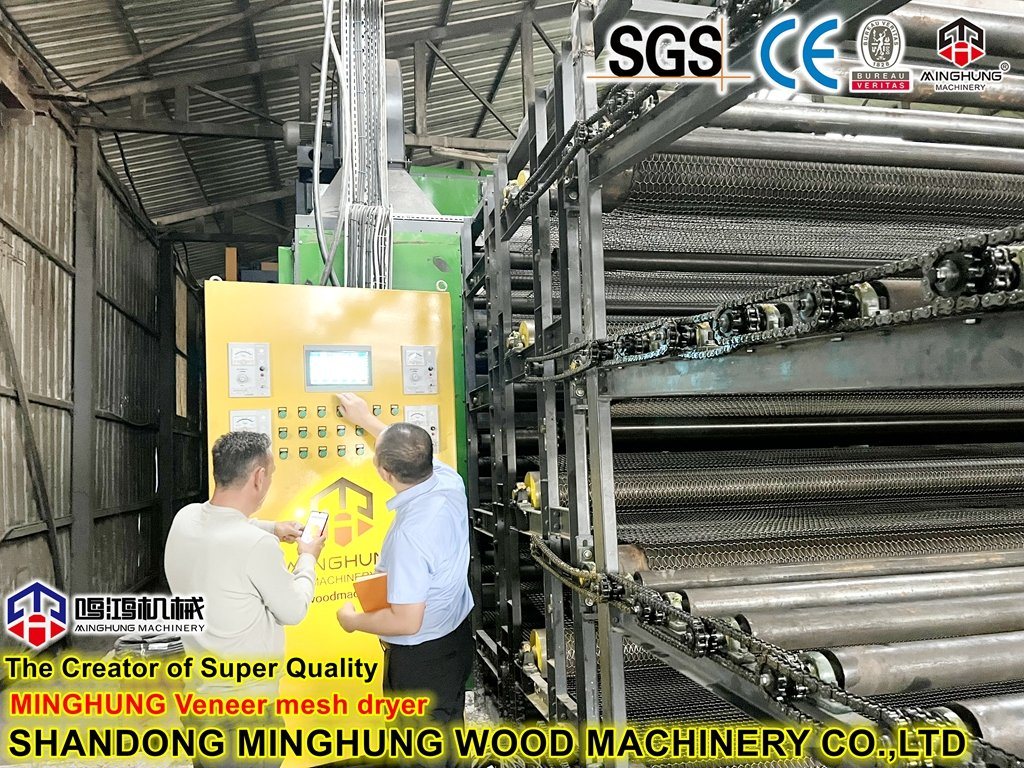

Single/Double Layer Conveying Device: Stainless steel mesh belt or roller conveyor for smooth operation
Insulated Drying Chamber: Rock wool sandwich panel structure to minimize heat loss
Dehumidification System: Timed or automatic moisture exhaust to maintain optimal drying environment
Simple Electrical Control System: Digital temperature display controller with basic start-stop controls for clear operation
Simplified Structure: Eliminates complex multi-layer configurations, adopting single or double-layer design to reduce material usage and manufacturing difficulty
High-Quality Domestic Standard Components: Fans, motors, bearings, etc. are selected from top domestic brands, balancing quality and price
Modular Production: Batch prefabrication of standard units shortens manufacturing cycles and reduces unit costs
Rational Configuration: Avoids redundant functions, retaining only the core systems essential for drying to prevent unnecessary cost waste
Core Advantages for High Return
Low Initial Investment: Under the same production capacity, the equipment price is only 50%~65% of comparable high-end models
Low Operating Costs: Optimized air duct design improves thermal efficiency, reducing energy consumption per unit of product by approximately 20% compared to traditional old equipment
Low Maintenance Expenses: Simple structure with fewer wear parts; parts are highly standardized, easy to replace, and affordable
High Product Yield Rate: Stable and reliable drying quality reduces waste losses from cracking and deformation
Fast Payback Period: Based on normal production output, most customers can recover the full equipment investment within 6 to 12 months
Technical Parameters (Reference Range)
Parameter | Specification Range |
Structure Type | Single/Double Layer Tunnel or Chamber Type |
Effective Drying Width | 1000mm - 2500mm |
Applicable Board Thickness | 2mm - 30mm |
Working Temperature | 60℃ - 160℃ (adjustable) |
Conveying Speed | 0.3 - 4 m/min (adjustable) |
Moisture Content Control Range | 6% - 14% |
Heat Source Types | Steam / Thermal Oil / Biomass Pellets / Coal-fired Hot Air Furnace |
Control System | Digital display instrument control / Optional simplified PLC version |
Power Requirement | 380V / 50Hz / 3-Phase (customizable according to local voltage) |
Board Drying Quality Assurance
Although positioned as an economical model, we never compromise on drying quality:
Top-and-bottom hot air circulation design ensures uniform temperature distribution across the board surface
Reasonable matching of air velocity and temperature prevents over-drying or under-drying of veneers
Moisture content at the discharge end can be stably controlled within process requirements

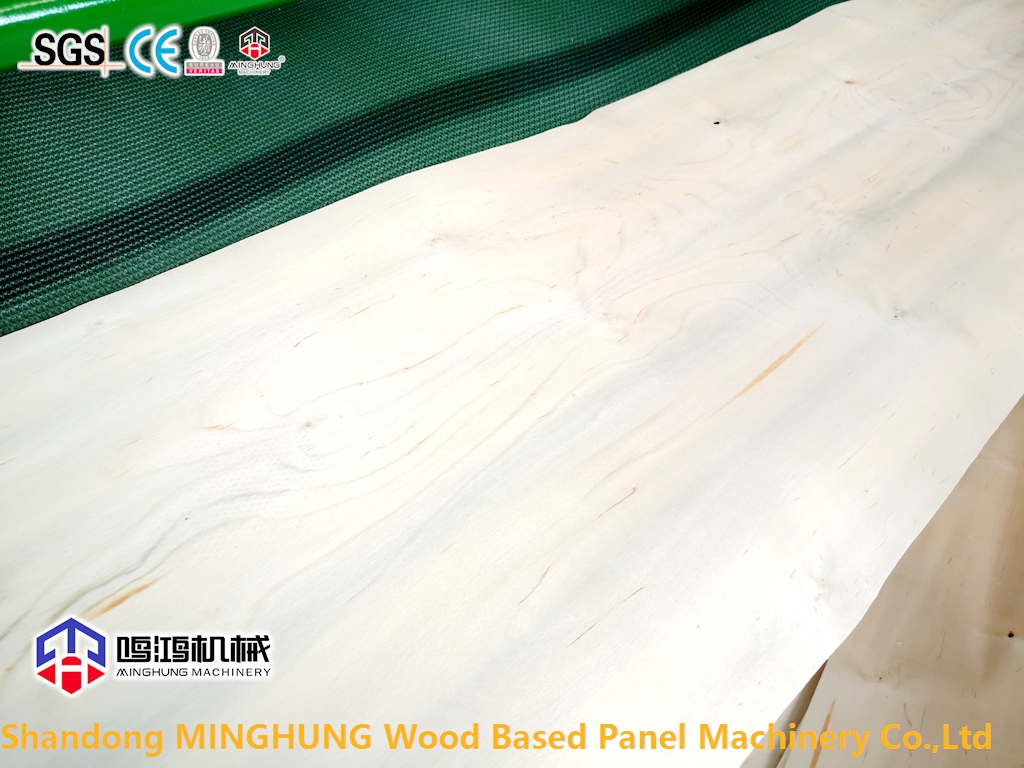

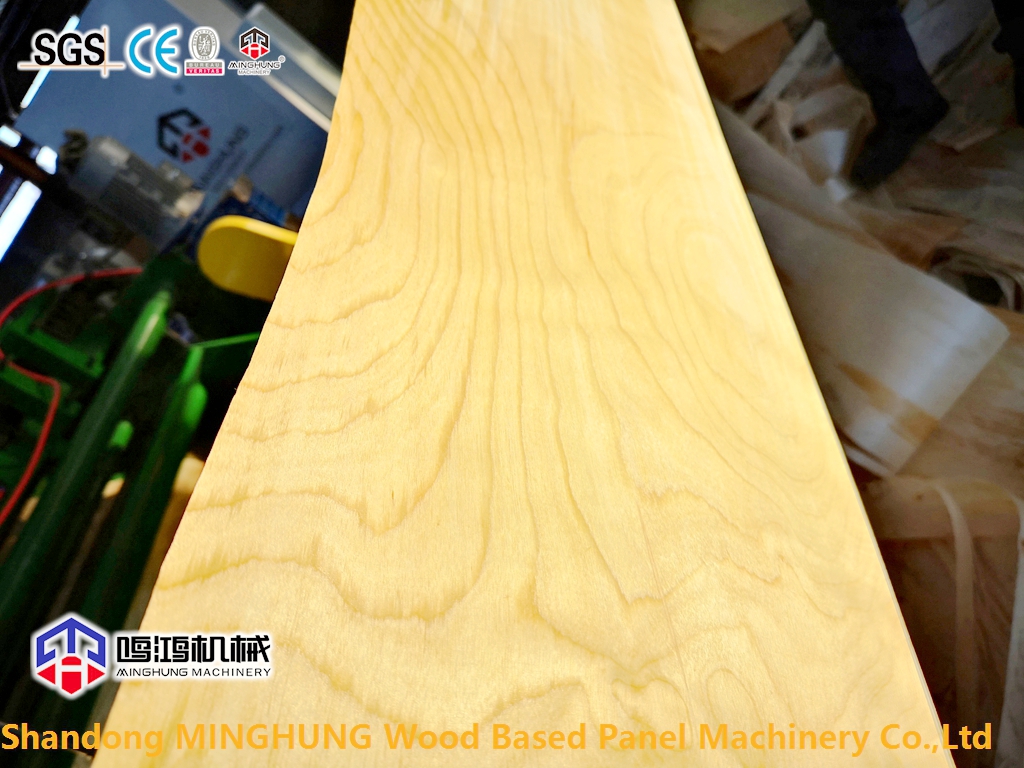

Dried boards are flat with uniform color, meeting the standards for subsequent glue application, lay-up, hot pressing, and other processes
Optional Features (Add as Needed for Flexible Upgrades)

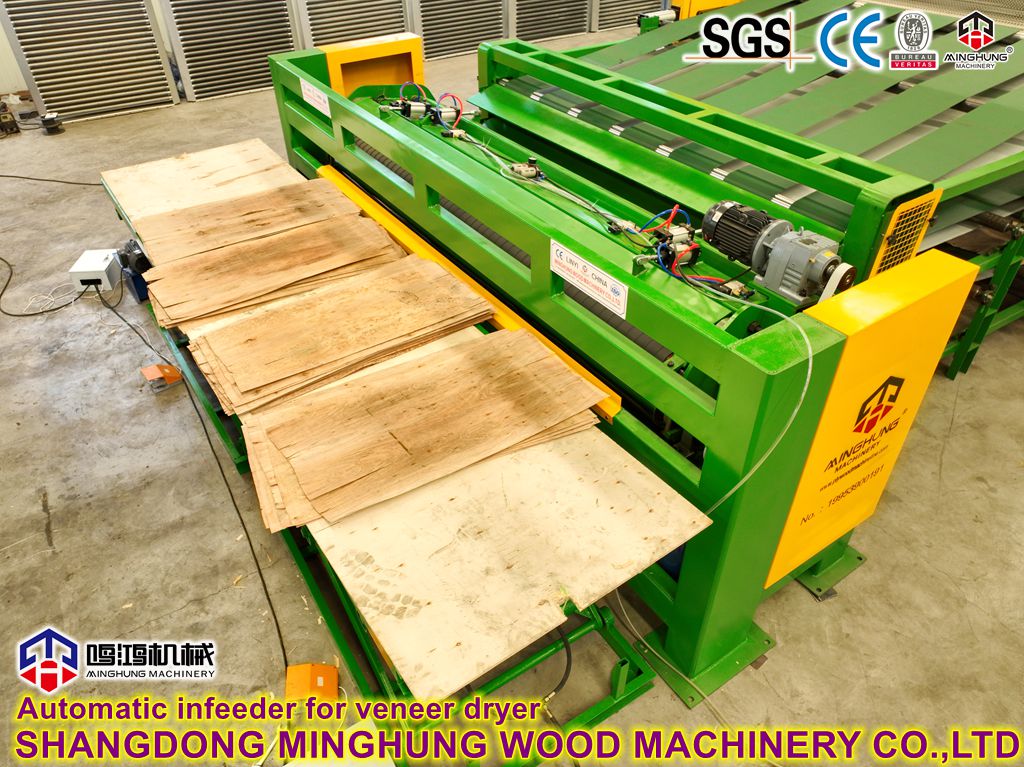

Automatic feeding device
Automatic discharge stacking table
Online moisture content detector
Variable frequency speed control system
PLC touchscreen control (upgraded version)
After-Sales Service and Customer Support
Complete user manual and installation guide drawings provided
Remote video guidance for installation and commissioning to save customer travel costs
12-month warranty on core components (heaters, fans)
Long-term technical consultation and spare parts supply services
Customers are welcome to bring materials to our factory for trial testing to verify drying performance
Factory visits are welcome to observe real production sites and customer case studies
