Hydraulic 500t Cold Press for Plywood Manufacturing
You are here: Home » Plywood Machine Series » Plywood Pre Pressing » Hydraulic 500t Cold Press for Plywood Manufacturing


Hydraulic 500t Cold Press for Plywood Manufacturing

Cold press machine for pre-pressing glued plywood, first make the plywood molding. so it will be easy to convey plywood into hot press machine.
  • MH-CP1800


  • 846596

  • Qingdao port

  • T/T or L/C

  • Our engineers will reply quickly when you have any problems of machine

  • full automatic

  • 1 years

  • Plywood cold press

  • Pre-pressing glued plywood

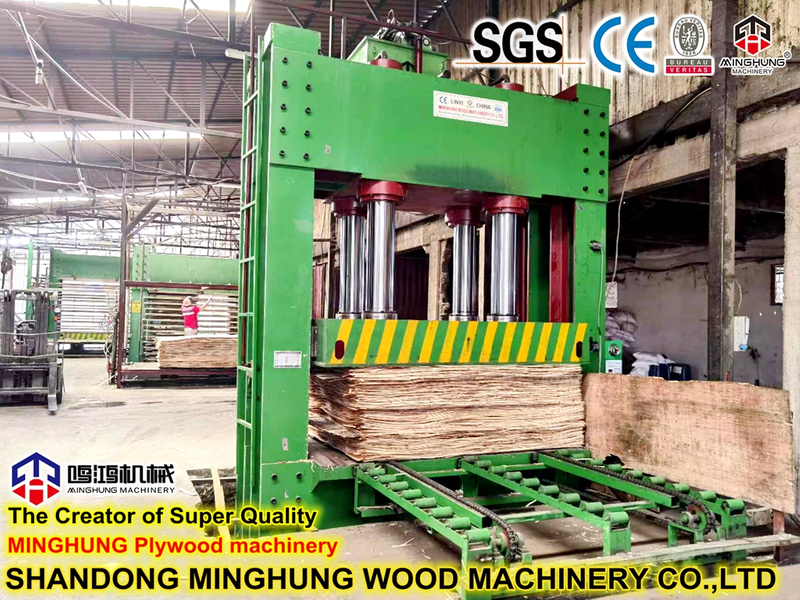

Hydraulic 500t Cold Press for Plywood Manufacturing

What is the Cold press machine?


It belongs to one step for plywood production, its function for pre-pressing plywood which inside full of glue on each layers of veneers, through suitable pressure to pressing them a while, each pieces of plywood will be forming. That time convey the plywood into each layers of hot press machine will be more easily.

The structure of cold press machine is very easy, mainly consist by machine frame, hydraulic system like the hydraulic station, oil cylinder, and electric system

Cold press machine can be different pressure according to different clients requires, usually the 500ton is more popular and can satisfy the production requires.

The standard size of cold press for making plywood size 1250*2500mm and 1220*2440mm, if your plywood size is bigger or smaller, we can customize the cold press.

The max opening and min opening, it can be different and designed, according to different clients requires. for example, some clients want it bigger, thus you can choose the max opening 1800mm, some clients want it smaller, then you can choose it be 1200mm or 1000mm

MINGHUNG Pre press machine

Cold press machine

MINGHUNG plywood cold pressing machien

Cold press

plywood cold press machine with double frame

Cold press with double frame

Cold press machine at our clients factory
cold press machine

cold press and hot press machine

plywood pre-press machine

plywood press


plywood press machine

We have exported many sets cold press to different countries, for its installation is very easy, when plywood press machine arrive at your factory, we will send more details show you how to install and operate it.

Cold press machine mainly parts

press machine frame

Good and thick steel plate material

cold press parts

Good designed electric box with good brand electric parts

hydraulic station for cold pressing machine

Hydraulic station

With Siemens engines

For our plywood cold hot press machine, all mainly parts and small parts, we use good type, so our press machine can works very well and keep long life span.

Specification of Cold press machine
Name 500t Cold press machine 600t Cold press machine
Oil cylinders Dia 360mm *2pcs Dia 260mm *4pcs
Max opening 1200mm 1200mm
Min opening 200mm 200mm
Frame Standard frame Double frame -more stronger
Weight 15000 kgs 20000 kgs

Note: Cold press machine's specification can be designed and customized according to different requirements.

Questions you may want to know

<1> How long of your machine warranty?

2 years for main parts.

<2> The production time?

1 month.

<3> Payment terms:

T/T. 30% deposit, 70% before delivery.

<4> Will you help me solve when i meet problem about machine?

We will at the fist time reply you and help you solve.

<5> Will you engineer come to install machine?

Yes, when machine soon reach your factory, our engineer will go to your factory.

Related plywood equipment

MINGHUNG hot press machine

China hot press machine for plywood manufacturing

Hot press machine

It is pressing plywood into solid and strong pieces.

plywood sizing machine

Plywood sizing machine

It is cutting and trimming plywood edge, and make plywood edge be clean and tidiness, make your plywood quality good

lift table with good hydraulic station

Lift table

Our factory manufacture the full sets of plywood machine more than 20 years, we can offer you the full necessary machine for making plywood board
