Multi-layer plywood production process

Multi-layer plywood production process
1. The main equipment required for the production of plywood:
1. 2700mm, the whole line of rotary cutting machine.
2. The whole line of 1500mm rotary cutting machine.
3. A knife sharpener.
4. One veneer dryer, customized according to the output of plywood.
5. 1 glue mixer
6. Glue coating machine 1 set 2700mm
7. cold press machine 1set
8. hot press machine 1set
9. Plywood edge sawing machine 1set
2. Production process of multi-layer plywood nine-layer plywood:
Poplar→broken wood→veneer peeling→veneer drying→finishing and repairing veneer→glue mixer mixing ratio→glue spreader gluing and stringing→group embryo board→pre-pressing machine pre-pressing→hot pressing machine hot pressing→plywood saw Edge → plywood inspection → secondary coating → hot pressing → secondary inspection → storage
The specific process flow is as follows:
1. Poplar, beech, birch, eucalyptus, and other woods are classified according to their length and diameter, and then cut into segments with a chainsaw.
2. Use different rotary cutting machines to cut veneer with different thicknesses such as 2.2mm, 1.7mm, 1.5mm, etc.
3. The single veneer is neatly stacked on the tray and transported to the dryer for veneer drying. The temperature in the dryer reaches 120-150 degrees Celsius, and the moisture content of the veneer after drying is less than 10%, and it works continuously.
4. After the dried veneers are stored and stacked, they are sorted, repaired and sorted.
5. Put the different classified veneers into the gluing machine for gluing.
6. Arrange the glued veneers in a criss-cross pattern of plywood embryos (5 layers, 7 layers, 9 layers, 12 layers), and the thickness is assembled and arranged according to the thickness of the plywood. The thickness of the plywood is as follows:3mm\6mm\9mm\12mm\15mm\18mm\25mm\30mm，ect。

Quantity:
Availability:




Inquire Add to Basket

Model: MH-HP15
Brand: MINGHUNG
Port: Qingdao, China
Production Capacity: 1000sets/Year
Payment Terms: L/C, T/T

Product Description

Multi-layer plywood production process

1. The main equipment required for the production of plywood:
1. 2700mm, the whole line of rotary cutting machine.
2. The whole line of 1500mm rotary cutting machine.
3. A knife sharpener.
4. One veneer dryer, customized according to the output of plywood.
5. 1 glue mixer
6. Glue coating machine 1 set 2700mm
7. cold press machine 1set
8. hot press machine 1set
9. Plywood edge sawing machine 1set
2. Production process of multi-layer plywood nine-layer plywood:
Poplar→broken wood→veneer peeling→veneer drying→finishing and repairing veneer→glue mixer mixing ratio→glue spreader gluing and stringing→group embryo board→pre-pressing machine pre-pressing→hot pressing machine hot pressing→plywood saw Edge → plywood inspection → secondary coating → hot pressing → secondary inspection → storage
The specific process flow is as follows:
1. Poplar, beech, birch, eucalyptus, and other woods are classified according to their length and diameter, and then cut into segments with a chainsaw.
2. Use different rotary cutting machines to cut veneer with different thicknesses such as 2.2mm, 1.7mm, 1.5mm, etc.
3. The single veneer is neatly stacked on the tray and transported to the dryer for veneer drying. The temperature in the dryer reaches 120-150 degrees Celsius, and the moisture content of the veneer after drying is less than 10%, and it works continuously.
4. After the dried veneers are stored and stacked, they are sorted, repaired and sorted.
5. Put the different classified veneers into the gluing machine for gluing.
6. Arrange the glued veneers in a criss-cross pattern of plywood embryos (5 layers, 7 layers, 9 layers, 12 layers), and the thickness is assembled and arranged according to the thickness of the plywood. The thickness of the plywood is as follows:3mm\6mm\9mm\12mm\15mm\18mm\25mm\30mm，ect。Friends, for save your precious time, please tell me your conditions and requires, i will offer you the suitable plywood machine details for your reference.

Our factory produce the whole sets Plywood Machine, include plywood hot press machine, plywood cold press machine, glue spreader, plywood veneer paving line, plywood edge cutting saw, sanding machine and others.

>>>>VENEER PEELING MACHINE LINE:

>>>>GLUE SPREADER:

>>>> PRESS MACHINE LINE:

>>>>PLYWOOD EDGE SAW MACHINE :

PLYWOOD CUTTER

Product name	Plywood Hot Press Machine
Layers	8 /10 /12 /15 /20 /25
Pressure	400t /500t /600t /800t /1000t /1200t
Cylinder	φ3202pcs /φ3602pcs /φ2206pcs /φ2606pcs
Hot platen size	2700137042/52/62mm
Power	18.5kw/29.5kw
Weight	33t /48t

Advantages:
WHATSAPP: +8618769900191 +8615589105786 +8615805493072

EMAIL: minghungmachinery@gmail.com

China Plywood Machine China Woodworking Machine Plywood Manufacturing Process in China Factory Plywood manufacturing process Plywood Production Line Plywood Machine Rotary type face veneer peeling lathe Veneer Peeling Lathe plywood machine line plywood equipment

Advantages of veneer dryer ?

08-13 2022

What is a veneer dryer?MINGHUNG Roller veneer dryer for drying original wood veneer, remove abundant humidity, in the end, the wood veneer humidity will be 5%-10%, so it is suitable for making plywood.Veneer roller dryer are suitable for big drying capacity per day, it can be different length, width

SHANDONG MINGHUNG WOOD MACHINERY FACTORY

08-05 2020

Shandong Minghung Wood Machinery Factory Shandong minghung wood machine factory produces plywood machinery in linyi city city, china, dedicated to providing high-quality and suitable machines veneer machine,plywood machine,veneer splicing machine.veneer dryer machine,veneer peeling machine,plywood v

plywood hot pressing process

05-27 2023

Whatsapp: +8618769900191 +8615589105786 +8615805493072Email: minghungmachinery@gmail.comWebsite: www.plywoodmachineline.com

glue mixer hot press cold press glue spreader_副本.jpg

Kontrplak Sıcak Pres Makinası

07-24 2021

Merhaba, Ben Lucinda Cin'den. Fabrikamız kontrplak makinesi ve ağaç soyma makinesi üretmektedir. bugün sizin için kontrplak sıcak pres makinesini tanıtacağım.

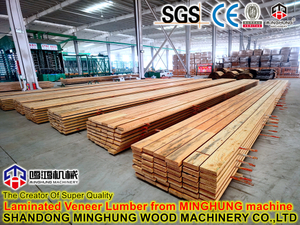

What is LVL sheet

06-03 2023

LVL laminated veneer lumber (Laminated Veneer Lumber,) is a material formed by laminating thick veneers along the direction of the grain, hot pressing and gluing, and then sawing. can make upArtificial fast-growing wood has shortcomings such as soft material, low strength, and large size variability

Melamine impregnated film paper veneer wood-based panel machine.jpg

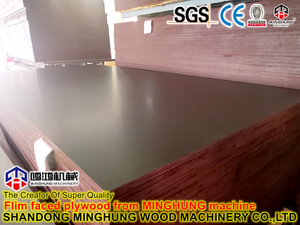

Melamine impregnated film paper veneer wood-based panel machine manufacturing

06-03 2023

Decorative panel: melamine board, the full name is melamine impregnated film paper veneer wood-based panel, which is to soak paper with different colors or textures in melamine resin adhesive, then dry to a certain degree of curing, and pave it on particleboard, The surface of medium density fiberbo

What is Anti slip plywood? and How to produce it?

06-03 2023

What is Anti slip plywood? and How to produce it?Anti-slip plywoodVeneer wood-based panel, also known as decorative veneer wood-based panel. It is made of ordinary wood veneer, color veneer, integrated veneer and reconstituted wood decorative veneer glued on the surface of plywood, medium density fi

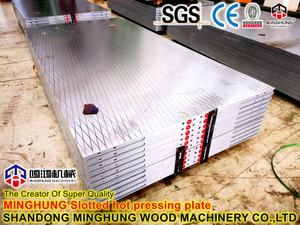

Plywood Hot Press Machine Hot plate performance
